Chisel Nozzle
Chisel Nozzle
$0.00

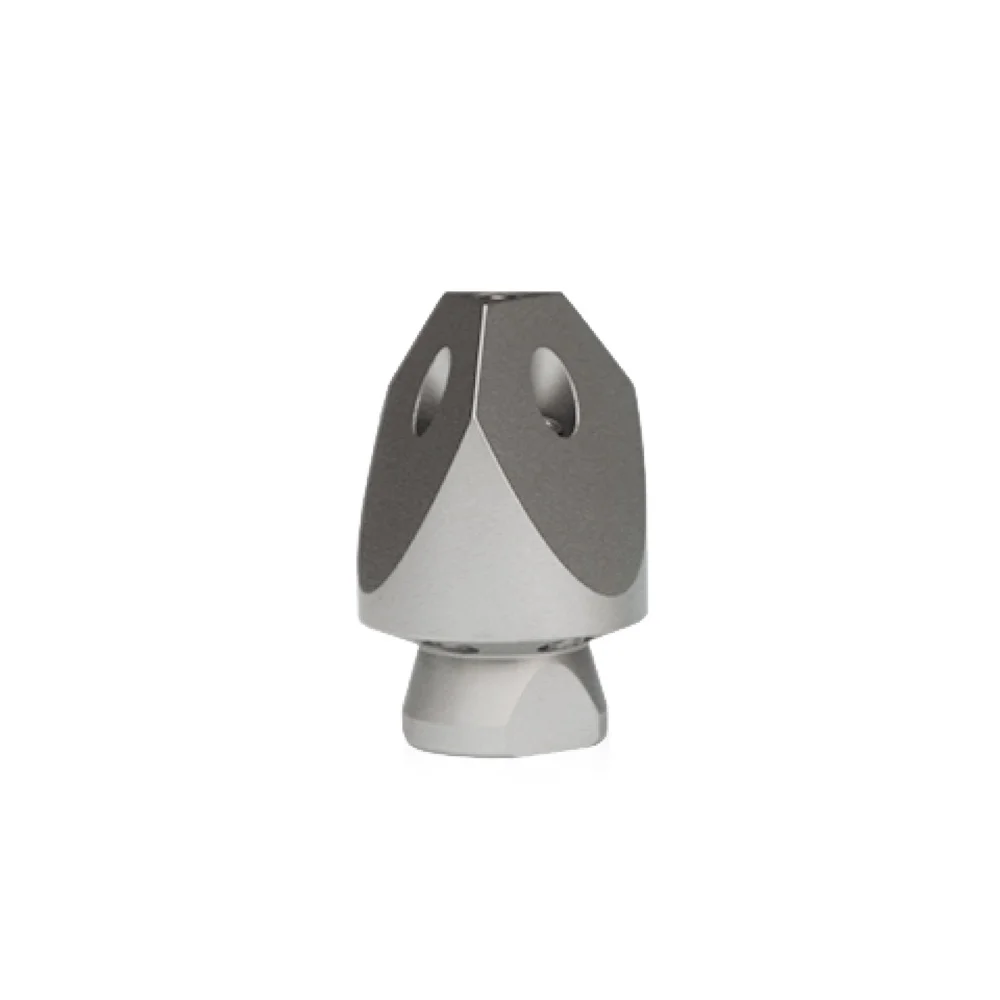

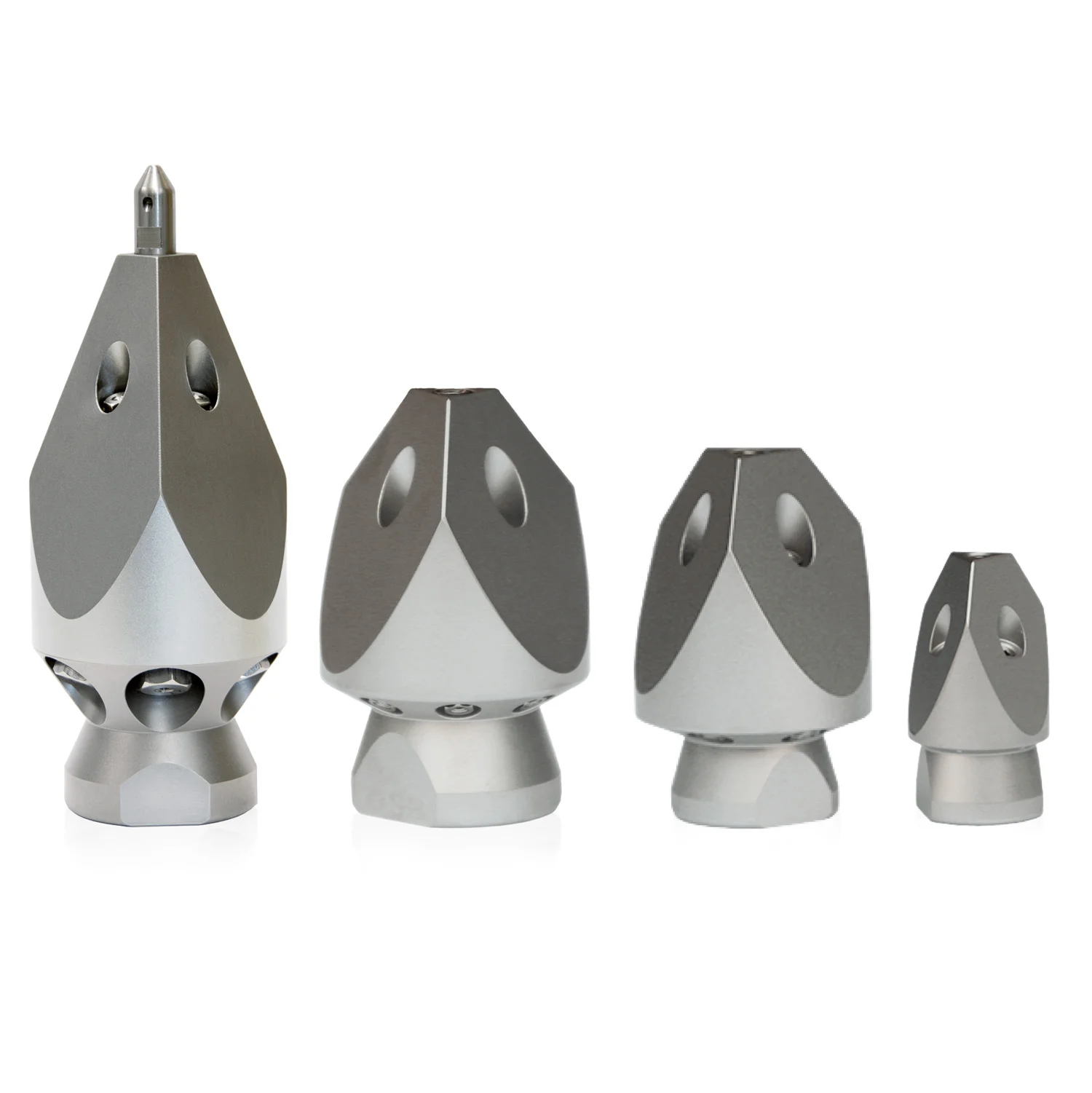

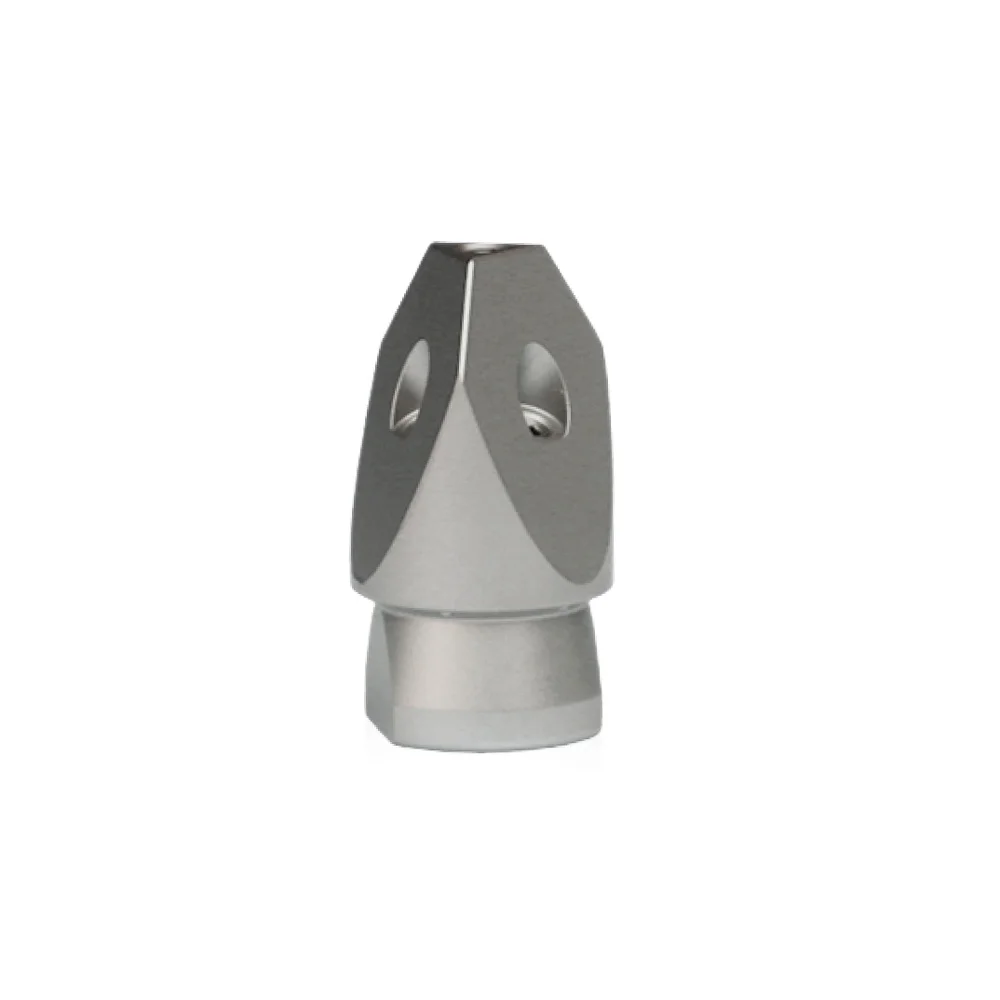

The Chisel Nozzle is a reliable sewer cleaning nozzle that is a must have! Sharp edges and multiple forward jets deliver powerful penetration to effectively open tough total blockages. A drill point can be added to the front of the Chisel as well.
Overview:
- Round Pipes
- Recycled Water Approved
- Tier 2, Tier 1
Quantity:
| Part Number |
Hose Con. (NPT) |
GPM/ Minimum |
Pipe Diameter (in) |
Dimensions (L x W) |
Weight (lbs) |
Rear Jets |
Front Jets |
Radial Jets |
Product Tier |
|---|---|---|---|---|---|---|---|---|---|
| 1316 | 1 1/4" | 100 | 8" - 24" | 7.08" x 3.34" | 9.7 | 6 | 5 | - | Tier 2 |
| 1317 | 1 1/4" | 80 | 8" - 20" | 6.29" x 2.95" | 5.51 | 6 | 5 | - | Tier 2 |
| 1318 | 1" | 60 | 8"- 20" | 6.29" x 2.95" | 5.51 | 6 | 5 | - | Tier 2 |
| 1319 | 1 1/4" | 80 | 8" - 20" | 3.93" x 2.36" | 1.76 | 10 | 4 | - | Tier 2 |
| 1320 | 1" | 80 | 8" - 15" | 3.74" x 2.36" | 1.5 | 8 | 4 | - | Tier 2 |
| 1323 | 3/4" | 30 | 6" - 12" | 2.95" x 1.96" | 0.66 | 6 | 4 | - | Tier 2 |
| 1326 | 1/2" | 12 | 4" - 8" | 2.36" x 1.18" | 0.33 | 6 | 4 | - | Tier 1 |
| 1328 | 3/8" | 12 | 2" - 4" | 1.57" x .98" | <0.22 | 6 | 4 | - | Tier 1 |
| 1330 | 1/4" | 6 | 2" - 4" | 1.18" x .78" | <0.22 | 6 | 4 | - | Tier 1 |
| 1331 | 1/4" | 4 | 2" - 4" | 1.18" x .78" | <0.22 | 3 | 4 | - | Tier 1 |
SOURCE: USB-USA, LLC.
