Tri-Jet 3D
Tri-Jet 3D
$0.00

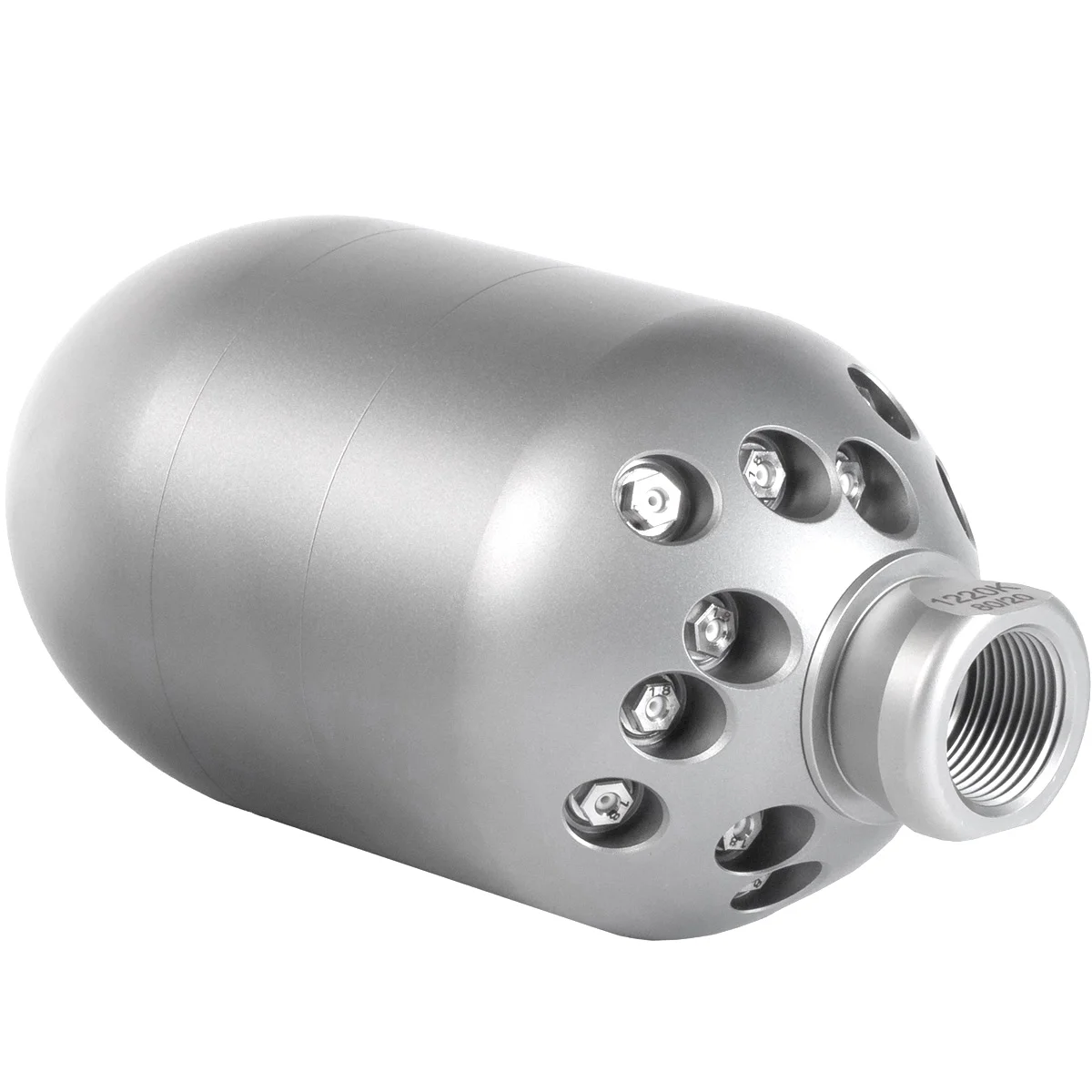

Options are what this high-performance nozzle is all about. The Tri-Jet 3D nozzle available in aluminum or stainless steel makes use of three different optimal rear spray angles, 7°/14°/21°. As an option, one of the spray angles can be blocked off all the way around the nozzle to focus the cleaning process on pulling, flushing or cleaning with the remaining two spray angles. This nozzle comes standard with one-piece ceramic inserts.
Overview:
- Round Pipes, Oval Shaped Pipes
- 3D Fluid Mechanics
- Recycled Water Approved
- Tier 3
Quantity:
| Part Number |
Hose Con. (NPT) |
GPM/ Minimum |
Pipe Diameter (in) |
Dimensions (L x W) |
Weight (lbs) |
Rear Jets |
Front Jets |
Radial Jets |
Product Tier |
|---|---|---|---|---|---|---|---|---|---|
| 1225 | 1 1/2" | 110 | 16" - 48" | 10.23" x 6.29" | 44.09 | 15 | - | - | Tier 3 |
| 1220 | 1 1/4" | 80 | 11.81" - 40" | 7.87" x 4.72" | 23.14 | 15 | - | - | Tier 3 |
| 1218 | 1" | 80 | 10" - 32" | 7.08" x 4.33" | 17.63 | 15 | - | - | Tier 3 |
| 1213 | 1" | 60 | 8" - 20" | 6.10" x 3.93" | 12.12 | 12 | - | - | Tier 3 |
| 1210 | 1" | 50 | 4" - 12" | 4.92" x 2.75" | 4.85 | 12 | - | - | Tier 3 |
SOURCE: USB-USA, LLC.
